This was the final assignment for CS241 that combined all the course content together. It took processed C code (with restrictions) as input and turned it into MIPS assembly code. Each piece of the compiler (assembler, parser, linker) was built for each assignment throughout the course.

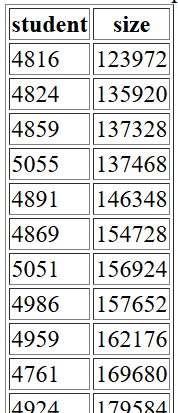

Bonus marks were available to anyone who could achieve a output file size under 180,000 bytes on a series of complex programs as input. A leaderboard was also created that ranked the file sizes of correct programs. I ranked 10th (student 4761) out of the 87 passing programs.

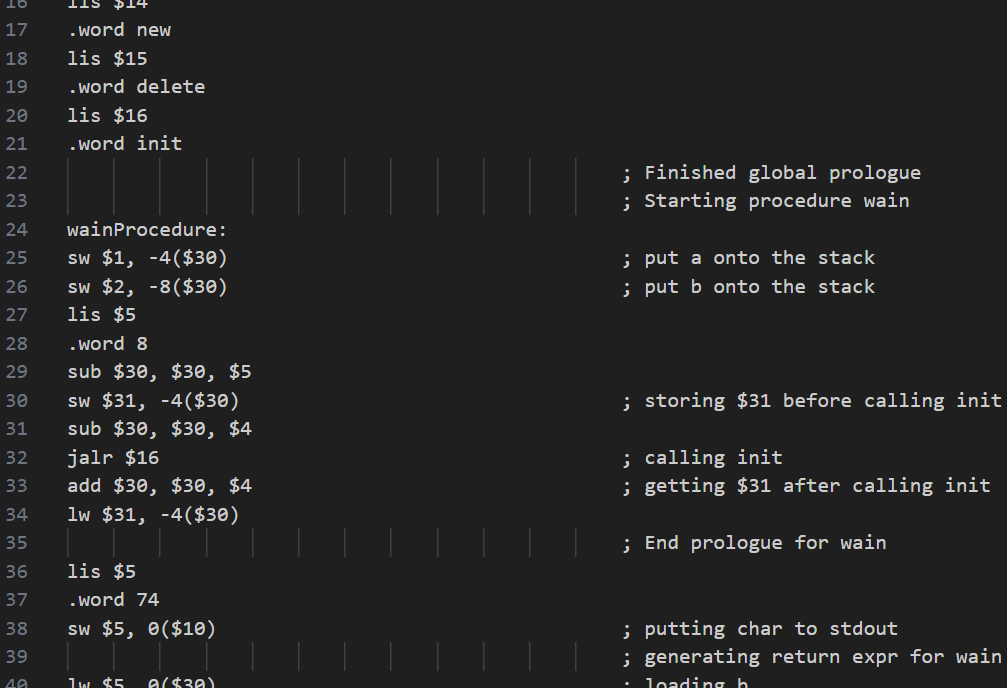

On the left is the WLP4 input, and on the right is the compiler's output, an equivalent program in MIPS Assembly
int partition(int* array, int left, int right) {
int pivot = 0; int i = 0; int j = 0;
int temp = 0; int break = 0; int ret = 0;
pivot = *(array+left);
i = left-1; j = right+1;
while(break == 0) {
i = i+1; while(*(array+i) < pivot) { i = i+1; }
j = j-1; while(*(array+j) > pivot) { j = j-1; }
if(i >= j) { ret = j; break = 241; } else {}
if(break != 241) {
temp = *(array+i); *(array+i) = *(array+j); *(array+j) = temp;
} else {}
}
return ret;
}
int fastSort(int* array, int left, int right) {
int skip = 0; int pivot = 0;
if(left < 0) { skip = 1; } else {}
if(right < 0) { skip = 1; } else {}
if(right < = left) { skip = 1; } else {}
if(skip == 0) {
pivot = partition(array, left, right);
skip = fastSort(array, left, pivot);
skip = fastSort(array, pivot+1, right);
} else {}
return 0;
}
int wain(int* a, int b) {
int sort = 0;
int i = 0; while(i < b) { println(*(a+i)); i = i+1; }
sort = fastSort(a,0,b-1);
i = 0; while(i < b) { println(*(a+i)); i = i+1; }
return 0;
}
.import print
.import init
.import new
.import delete
; Generating global prologue
lis $4
.word 4
lis $10
.word 0xffff000c
lis $11
.word 0xffff0004
lis $12
.word 1
lis $13
.word print
lis $14
.word new
lis $15
.word delete
lis $16
.word init
; Finished global prologue
; Starting procedure wain
wainProcedure:
sw $1, -4($30) ; put a onto the stack
sw $2, -8($30) ; put b onto the stack
sw $0, -12($30) ; putting sort onto the stack
sw $0, -16($30) ; putting i onto the stack
lis $5
.word 16
sub $30, $30, $5
sw $31, -4($30) ; storing $31 before calling init
sub $30, $30, $4
jalr $16 ; calling init
add $30, $30, $4 ; getting $31 after calling init
lw $31, -4($30)
; End prologue for wain
beginwaintest1: ; begin while
lw $5, 0($30) ; loading i
sw $5, -4($30)
sub $30, $30, $4
lw $6, 12($30) ; loading b
add $30, $30, $4
lw $5, -4($30)
slt $5, $5, $6 ; <
beq $5, $0, waintest1
lw $5, 12($30) ; loading a
sw $5, -4($30)
sub $30, $30, $4
lw $6, 4($30) ; loading i
add $30, $30, $4
lw $5, -4($30)
mult $6, $4 ; multiplying integer by 4 before pointer addition
mflo $6
add $5, $5, $6 ; pointer addition done
lw $1, 0($5) ; dereference
sw $31, -4($30) ; pushing $31 to stack before calling print
sub $30, $30, $4
jalr $13 ; calling print
add $30, $30, $4 ; getting $31 back after calling print
lw $31, -4($30)
lw $5, 0($30) ; loading i
add $5, $5, $12 ; int-int addition done
sw $5, 0($30) ; assigned to i
beq $0, $0, beginwaintest1
waintest1: ; end while
sw $31, -4($30) ; putting $31 on stack before calling fastSort
sub $30, $30, $4
lw $5, 16($30) ; loading a
sw $5, -4($30) ; putting argument from wain for another function
sub $30, $30, $4
lis $5
.word 0
sw $5, -4($30) ; putting argument from wain for another function
sub $30, $30, $4
lw $5, 20($30) ; loading b
sub $5, $5, $12 ; subtracting
sw $5, -4($30) ; putting argument from wain for another function
sub $30, $30, $4
lis $5 ; calling fastSort
.word fastSortProcedure
jalr $5
add $5, $0, $3 ; moving return value from a procedure call
add $30, $30, $4 ; getting $31 back after calling fastSort
lw $31, -4($30)
sw $5, 4($30) ; assigned to sort
sw $0, 0($30) ; assigned to i
beginwaintest2: ; begin while
lw $5, 0($30) ; loading i
sw $5, -4($30)
sub $30, $30, $4
lw $6, 12($30) ; loading b
add $30, $30, $4
lw $5, -4($30)
slt $5, $5, $6 ; <
beq $5, $0, waintest2
lw $5, 12($30) ; loading a
sw $5, -4($30)
sub $30, $30, $4
lw $6, 4($30) ; loading i
add $30, $30, $4
lw $5, -4($30)
mult $6, $4 ; multiplying integer by 4 before pointer addition
mflo $6
add $5, $5, $6 ; pointer addition done
lw $1, 0($5) ; dereference
sw $31, -4($30) ; pushing $31 to stack before calling print
sub $30, $30, $4
jalr $13 ; calling print
add $30, $30, $4 ; getting $31 back after calling print
lw $31, -4($30)
lw $5, 0($30) ; loading i
add $5, $5, $12 ; int-int addition done
sw $5, 0($30) ; assigned to i
beq $0, $0, beginwaintest2
waintest2: ; end while
; generating return expr for wain
lis $3
.word 0
jr $31
; Starting procedure fastSort
fastSortProcedure:
sw $0, -4($30) ; putting skip onto the stack
sw $0, -8($30) ; putting pivot onto the stack
lis $5
.word 8
sub $30, $30, $5
; End prologue for fastSort
lw $5, 12($30) ; loading left
slt $5, $5, $0 ; <
beq $5, $0, fastSorttest1
sw $12, 4($30) ; assigned to skip
beq $0, $0, fastSorttest1end
fastSorttest1:
fastSorttest1end:
lw $5, 8($30) ; loading right
slt $5, $5, $0 ; <
beq $5, $0, fastSorttest2
sw $12, 4($30) ; assigned to skip
beq $0, $0, fastSorttest2end
fastSorttest2:
fastSorttest2end:
lw $5, 8($30) ; loading right
sw $5, -4($30)
sub $30, $30, $4
lw $6, 16($30) ; loading left
add $30, $30, $4
lw $5, -4($30)
slt $5, $6, $5 ; <=, int
bne $5, $0, fastSorttest3
sw $12, 4($30) ; assigned to skip
beq $0, $0, fastSorttest3end
fastSorttest3:
fastSorttest3end:
lw $5, 4($30) ; loading skip
bne $5, $0, fastSorttest4 ; ==
sw $31, -4($30) ; putting $31 on stack before calling partition
sub $30, $30, $4
lw $5, 20($30) ; loading array
sw $5, -4($30) ; putting argument from fastSort for another function
sub $30, $30, $4
lw $5, 20($30) ; loading left
sw $5, -4($30) ; putting argument from fastSort for another function
sub $30, $30, $4
lw $5, 20($30) ; loading right
sw $5, -4($30) ; putting argument from fastSort for another function
sub $30, $30, $4
lis $5 ; calling partition
.word partitionProcedure
jalr $5
add $5, $0, $3 ; moving return value from a procedure call
add $30, $30, $4 ; getting $31 back after calling partition
lw $31, -4($30)
sw $5, 0($30) ; assigned to pivot
sw $31, -4($30) ; putting $31 on stack before calling fastSort
sub $30, $30, $4
lw $5, 20($30) ; loading array
sw $5, -4($30) ; putting argument from fastSort for another function
sub $30, $30, $4
lw $5, 20($30) ; loading left
sw $5, -4($30) ; putting argument from fastSort for another function
sub $30, $30, $4
lw $5, 12($30) ; loading pivot
sw $5, -4($30) ; putting argument from fastSort for another function
sub $30, $30, $4
lis $5 ; calling fastSort
.word fastSortProcedure
jalr $5
add $5, $0, $3 ; moving return value from a procedure call
add $30, $30, $4 ; getting $31 back after calling fastSort
lw $31, -4($30)
sw $5, 4($30) ; assigned to skip
sw $31, -4($30) ; putting $31 on stack before calling fastSort
sub $30, $30, $4
lw $5, 20($30) ; loading array
sw $5, -4($30) ; putting argument from fastSort for another function
sub $30, $30, $4
lw $5, 8($30) ; loading pivot
add $5, $5, $12 ; int-int addition done
sw $5, -4($30) ; putting argument from fastSort for another function
sub $30, $30, $4
lw $5, 20($30) ; loading right
sw $5, -4($30) ; putting argument from fastSort for another function
sub $30, $30, $4
lis $5 ; calling fastSort
.word fastSortProcedure
jalr $5
add $5, $0, $3 ; moving return value from a procedure call
add $30, $30, $4 ; getting $31 back after calling fastSort
lw $31, -4($30)
sw $5, 4($30) ; assigned to skip
beq $0, $0, fastSorttest4end
fastSorttest4:
fastSorttest4end:
; generating return expr for fastSort
lis $3
.word 0
lis $5
.word 20
add $30, $30, $5 ; Finished epilogue for fastSort
jr $31
; Starting procedure partition
partitionProcedure:
sw $0, -4($30) ; putting pivot onto the stack
sw $0, -8($30) ; putting i onto the stack
sw $0, -12($30) ; putting j onto the stack
sw $0, -16($30) ; putting temp onto the stack
sw $0, -20($30) ; putting break onto the stack
sw $0, -24($30) ; putting ret onto the stack
lis $5
.word 24
sub $30, $30, $5
; End prologue for partition
lw $5, 32($30) ; loading array
sw $5, -4($30)
sub $30, $30, $4
lw $6, 32($30) ; loading left
add $30, $30, $4
lw $5, -4($30)
mult $6, $4 ; multiplying integer by 4 before pointer addition
mflo $6
add $5, $5, $6 ; pointer addition done
lw $5, 0($5) ; dereference
sw $5, 20($30) ; assigned to pivot
lw $5, 28($30) ; loading left
sub $5, $5, $12 ; subtracting
sw $5, 16($30) ; assigned to i
lw $5, 24($30) ; loading right
add $5, $5, $12 ; int-int addition done
sw $5, 12($30) ; assigned to j
beginpartitiontest1: ; begin while
lw $5, 4($30) ; loading break
bne $5, $0, partitiontest1 ; ==
lw $5, 16($30) ; loading i
add $5, $5, $12 ; int-int addition done
sw $5, 16($30) ; assigned to i
beginpartitiontest2: ; begin while
lw $5, 32($30) ; loading array
sw $5, -4($30)
sub $30, $30, $4
lw $6, 20($30) ; loading i
add $30, $30, $4
lw $5, -4($30)
mult $6, $4 ; multiplying integer by 4 before pointer addition
mflo $6
add $5, $5, $6 ; pointer addition done
lw $5, 0($5) ; dereference
sw $5, -4($30)
sub $30, $30, $4
lw $6, 24($30) ; loading pivot
add $30, $30, $4
lw $5, -4($30)
slt $5, $5, $6 ; <
beq $5, $0, partitiontest2
lw $5, 16($30) ; loading i
add $5, $5, $12 ; int-int addition done
sw $5, 16($30) ; assigned to i
beq $0, $0, beginpartitiontest2
partitiontest2: ; end while
lw $5, 12($30) ; loading j
sub $5, $5, $12 ; subtracting
sw $5, 12($30) ; assigned to j
beginpartitiontest3: ; begin while
lw $5, 32($30) ; loading array
sw $5, -4($30)
sub $30, $30, $4
lw $6, 16($30) ; loading j
add $30, $30, $4
lw $5, -4($30)
mult $6, $4 ; multiplying integer by 4 before pointer addition
mflo $6
add $5, $5, $6 ; pointer addition done
lw $5, 0($5) ; dereference
sw $5, -4($30)
sub $30, $30, $4
lw $6, 24($30) ; loading pivot
add $30, $30, $4
lw $5, -4($30)
slt $5, $6, $5 ; >
beq $5, $0, partitiontest3
lw $5, 12($30) ; loading j
sub $5, $5, $12 ; subtracting
sw $5, 12($30) ; assigned to j
beq $0, $0, beginpartitiontest3
partitiontest3: ; end while
lw $5, 16($30) ; loading i
sw $5, -4($30)
sub $30, $30, $4
lw $6, 16($30) ; loading j
add $30, $30, $4
lw $5, -4($30)
slt $5, $5, $6 ; >=, int
bne $5, $0, partitiontest4
lw $5, 12($30) ; loading j
sw $5, 0($30) ; assigned to ret
lis $5
.word 241
sw $5, 4($30) ; assigned to break
beq $0, $0, partitiontest4end
partitiontest4:
partitiontest4end:
lw $5, 4($30) ; loading break
lis $6
.word 241
beq $5, $6, partitiontest5 ; !=
lw $5, 32($30) ; loading array
sw $5, -4($30)
sub $30, $30, $4
lw $6, 20($30) ; loading i
add $30, $30, $4
lw $5, -4($30)
mult $6, $4 ; multiplying integer by 4 before pointer addition
mflo $6
add $5, $5, $6 ; pointer addition done
lw $5, 0($5) ; dereference
sw $5, 8($30) ; assigned to temp
lw $5, 32($30) ; loading array
sw $5, -4($30)
sub $30, $30, $4
lw $6, 20($30) ; loading i
add $30, $30, $4
lw $5, -4($30)
mult $6, $4 ; multiplying integer by 4 before pointer addition
mflo $6
add $5, $5, $6 ; pointer addition done
sw $5, -4($30) ; push left side's address
sub $30, $30, $4
lw $5, 36($30) ; loading array
sw $5, -4($30)
sub $30, $30, $4
lw $6, 20($30) ; loading j
add $30, $30, $4
lw $5, -4($30)
mult $6, $4 ; multiplying integer by 4 before pointer addition
mflo $6
add $5, $5, $6 ; pointer addition done
lw $6, 0($5) ; dereference
add $30, $30, $4 ; pop left side's address
lw $5, -4($30)
sw $6, 0($5) ; left side is a dereference
lw $5, 32($30) ; loading array
sw $5, -4($30)
sub $30, $30, $4
lw $6, 16($30) ; loading j
add $30, $30, $4
lw $5, -4($30)
mult $6, $4 ; multiplying integer by 4 before pointer addition
mflo $6
add $5, $5, $6 ; pointer addition done
sw $5, -4($30) ; push left side's address
sub $30, $30, $4
lw $6, 12($30) ; loading temp
add $30, $30, $4 ; pop left side's address
lw $5, -4($30)
sw $6, 0($5) ; left side is a dereference
beq $0, $0, partitiontest5end
partitiontest5:
partitiontest5end:
beq $0, $0, beginpartitiontest1
partitiontest1: ; end while
; generating return expr for partition
lw $3, 0($30) ; loading ret
lis $5
.word 36
add $30, $30, $5 ; Finished epilogue for partition
jr $31
